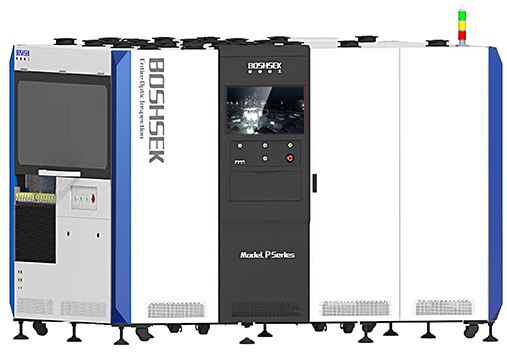

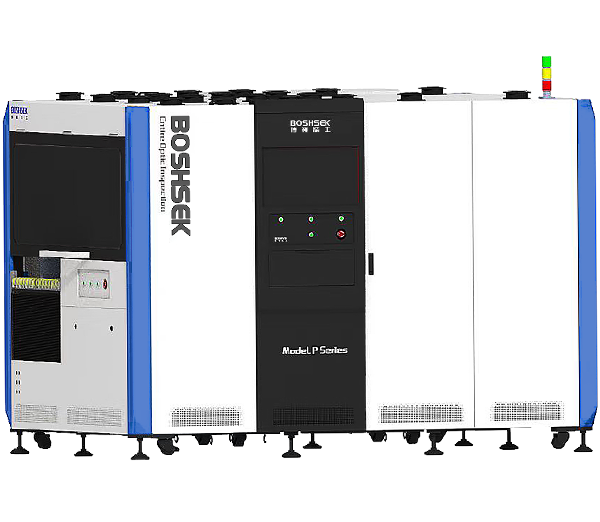

Model
|
P3-25
|
P4-25
|
P4-18
|
P5-18
|
P7-10(HDI/MINILED)
|
|
Resolution（um）
|
25um
|
25um
|
18 um
|
18um
|
10um
|
|
Detection Scope（mm）
|
50*100mm-560*700mm
|
50*100mm-650*700mm
|
50*100mm-540*700mm
|
50*100mm-650*700mm
|
50*100mm-500*600mm
|
|
Double Splicing Range（mm）
|
≤270mm
|
≤315mm
|
≤260mm
|
≤315mm
|
≤240mm
|
|
Measuring Plate Thickness（mm）
|
0.3-5mm
|
|
Detection Efficiency - Single splicing（PNL/H）
|
Maximum speed：
900PNL/H
|
|
Maximum speed：
800PNL/H
|
|
Detection efficiency - Double Pinyin（PNL/H）
|
Maximum speed：
1800PNL/H
|
Maximum speed：
1600PNL/H
|
|
Data Source
|
CAM+Device graphic scanning
|
|
|
Image Output Method
|
Color (R/G/B) splicing for one-time imaging
|
|
|
Defect Confirmation Method
|
VI scanning detection+AI intelligent judgment+VRS confirmation
|
|
|
Product Shipping Method
|
Belt conveyor
|
|
|
Counterpoint Method
|
Automatic learning alignment
|
|
|
Loading Mode
|
Double material table automatic loading and unloading
|
|
|
Board Entry Mode
|
Single board mode+dual board mode
|
|
|
Image Processing
|
Machine vision analysis+AI intelligent confirmation
|
|
|
Low Frequency Defect Detection Capability
|
Over 95% (indentations, dents, bumps)
|
|
|
Hole Detection Capability
|
Aperture ≥ 0.5mm, detection rate ≥ 90%
|
|
|
Bore Inspection Items
|
Burrs, punctures, ink entry, foreign objects, plug holes, copper on the inner wall of the hole, protrusions on the inner wall of the hole, etc
|
|
|
Dimensional Measurement
|
/
|
Pad size:±0.03mm
|
|
Front and Back Detection
|
Double Sided Synchronous Detection
|
|
|
Operating Current
|
15A
|
|
|
Power Supply
|
Single phase three wire& Nbsp& Nbsp& Nbsp& Nbsp; AC220V/rated power: 4KW, operating power: 3KW
|
|
|
Gas Supply
|
0.6-0.8MPA
|
|
|
Equipment Weight
|
2200kg
|
|
|
External Dimensions（L x W x H)
|
2671mm*1687mm*1800mm
|
|
